File formats used by the programs
Most of the formats used by the programs are standard for the games involved, but those for kakuro, bridges and sumpuzzle are unique to pzl programs.
sudoku
At present the program can read grids stored as files or from the Puzzle entry window in the formats shown schematically below. In these schematics "x" represents a valid cell symbol ("0-9" and "."). In actual files the symbols "0" and "." are used to represent unknown values. All other symbols in the files are ignored, which means that space (" ") cannot be used for unknown symbols.
So "076000000" is equivalent to ".76......", but " 76 " is invalid.
xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx Format 1 0000000128000400000000000600902000007000004000005010000150.. Format 2 [Puzzle] xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx xxxxxxxxx Format 3 xxx|xxx|xxx xxx|xxx|xxx xxx|xxx|xxx ----------- xxx|xxx|xxx xxx|xxx|xxx xxx|xxx|xxx ----------- xxx|xxx|xxx xxx|xxx|xxx xxx|xxx|xxx Format 4 x x x | x x x | x x x x x x | x x x | x x x x x x | x x x | x x x -------+-------+------ x x x | x x x | x x x x x x | x x x | x x x x x x | x x x | x x x -------+-------+------ x x x | x x x | x x x x x x | x x x | x x x x x x | x x x | x x x Format 5
*-----------* |xxx|xxx|xxx| |xxx|xxx|xxx| |xxx|xxx|xxx| |---+---+---| |xxx|xxx|xxx| |xxx|xxx|xxx| |xxx|xxx|xxx| |---+---+---| |xxx|xxx|xxx| |xxx|xxx|xxx| |xxx|xxx|xxx| *-----------* Format 6
3, 3 +------+------+------+ |*6 . 1| . 4 9|*5 2*8| | 2 .*9| . .*8|*1*6 4| | 5*4 .|*1 6*2| 7*3 9| +------+------+------+ | .*1 .|*8 . 3| . 7 .| | 8 . .| . . .| . . 1| | . 6 .| 7 .*1| . . .| +------+------+------+ | 7 . 4| . 1 .| . . 3| | 1 . .| . . .| . . 5| | . 9 .| 2 8 .| 4*1*7| +------+------+------+ Format 7 (example file) 7 3 1569 26 1589 4 269 12589 16 8 1259 1569 7 159 235 4 12359 136 2569 4 1569 26 1589 2358 2679 123589 1367 24569 7 145689 24 58 258 269 1239 1346 2456 125 14568 9 3 2578 267 12 1467 249 29 3 1 6 27 8 29 5 1 8 7 3 2 6 5 4 9 459 59 459 8 7 1 3 6 2 3 6 2 5 4 9 1 7 8 Format 8.1 for clues and candidates (example file) 7 3 1569 26 1589 4 269 12589 16 8 1259 1569 7 159 235 4 12359 136 2569 4 1569 26 1589 2358 2679 123589 1367 24569 7 145689 24 58 258 269 1239 1346 2456 125 14568 9 3 2578 267 12 1467 249 29 3 1 6 27 8 29 5 1 8 7 3 2 6 5 4 9 459 59 459 8 7 1 3 6 2 3 6 2 5 4 9 1 7 8 Format 8.2 for clues and candidates (example file) ------------------ -------------- ------------------ |7 3 1569 | 26 1589 4 | 269 12589 16 | |8 1259 1569 | 7 159 235 | 4 12359 136 | |2569 4 1569 | 26 1589 2358 | 2679 123589 1367 | ------------------ -------------- ------------------ |24569 7 145689 | 24 58 258 | 269 1239 1346 | |2456 125 14568 | 9 3 2578 | 267 12 1467 | |249 29 3 | 1 6 27 | 8 29 5 | ----------------- -------------- ------------------ |1 8 7 | 3 2 6 | 5 4 9 | |459 59 459 | 8 7 1 | 3 6 2 | |3 6 2 | 5 4 9 | 1 7 8 | ------------------ -------------- ------------------ Format 8.3 for clues and candidates (example file)
kakuro
The notation used for puzzle entry may look forbidding but is actually simple and requires the smallest possible number of keystrokes.
Cell types symbol/example Solve cell "*" (a cell to be solved) Blank cell "." (a padding cell) Separator "," Sum across "19" Sum down "23" Sum both "23/19" or "23\19"
Note that for cells which contain both a sum down and a sum across, the sum down must be written first i.e. in the left to right order as they appear in the grid. For example 23/19 defines a sum down of 23 and sum across of 19. The separator "," need only be used where it is essential to distinguish between the case of adjacent single digit numbers and the case of a double digit number. For example between two, three "2,3" and twenty three "23".
.21,19,4,3...3,4,30,29 19****26.28/21**** 28*****7/27***** 4**.10/7***9,14** 3**8/24*****12/12** .24,23/41*******24,23 23***....24*** 16**17.....17/16** 23***14,26.30,17/23*** .19,21/24***16/24***10,11 3**35*****8** 4**4,3/23***16,4/4** 26*****24***** 19****..13**** Example
Commas are only obligatory where needed, trailing dots are not obligatory, / and \ are equivalent.
sumpuzzle
.+.x.=70 +#x#+ .-9+.=-5 +#x#/ .-.-.=1 14#288#4 Example Legend . unknown value = separator between sum and total # blank squares to maintain column alignment +-x/ standard arithmetic symbols
Here the first line of the file is .+.x.=70 and the last is: 14#288#4 No spaces or additional lines are permitted.
sokoban
Level 1 'NABOKOSMOS 01' ##### # ## ## * .## # $$* # # * . # ## @ ### ##### Level 2 'NABOKOSMOS 02' #### ### ### # *$ # # # # # # ** # ### #@# # ** # # # # # *. # # ### #### Example
An example of a map set (the start of Aymeric du Peloux's Nabokosmos set). In this case the program would use 'NABOKOSMOS 01' and 'NABOKOSMOS 02' as the level names.
scrabbler
Below is an example of the format used to save scrabbler games. Please note that no error checking is done when these files are loaded so please do not edit them.
............... ............... ............... S......Q....... K...MOFUSSIL... L......I.HOODY. EH.....P....... NA.....O....... TRENTALS....... .D............. .W............. FAG............ ORA............ NEW............ T.P............ NEBEDOX UBD.OIE 248 240 Example
bridges
The files should contain only the digits 0-8, 0 representing an empty grid point. At present the code is completely unforgiving and refuses to tolerate any digression.
30204000030020002 03010020003003030 00103003000400203 05000000000000050 30200030200201000 05050002020000003 30000000000405040 00101000200000102 03040010010001000 30201000300300200 03030302002010000 10203040400003020 03000200002000202 Example
shikaku

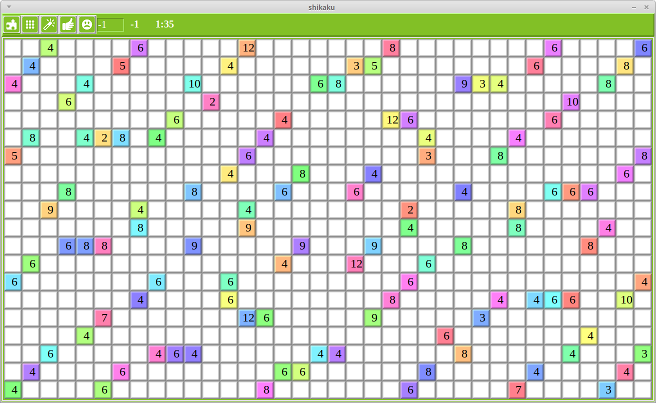

For Shikaku puzzles we need to cater for the possibility of double digit clues and the convention is that they should be preceded by a backslash (\). All unknown cells are coded as 0. At present the code is completely unforgiving and refuses to tolerate any digression.
0040000600000\120000000800000000600006 040000500000400000035000000006000080 4000400000\100000006800000093400000800 0006000000020000000000000000000\100000 000000000600000400000\1260000000600000 080042804000004000000004000040000000 500000000000060000000003000800000008 000000000000400080004000000000000060 000800000080000600060000040000666000 009000040000040000000020000080000000 000000080000090000000040000080000400 000688000090000090009000080000008000 0600000000000004000\120006000000000000 600000006000600000000060000000000004 0000000400006000000008000004046600\100 0000070000000\126000009000003000000000 000040000000000000000000600000004000 006000004640000004400000080000040003 040000600000000660000008000004000040 400006000000008000000060000070000300 Example
